Description:

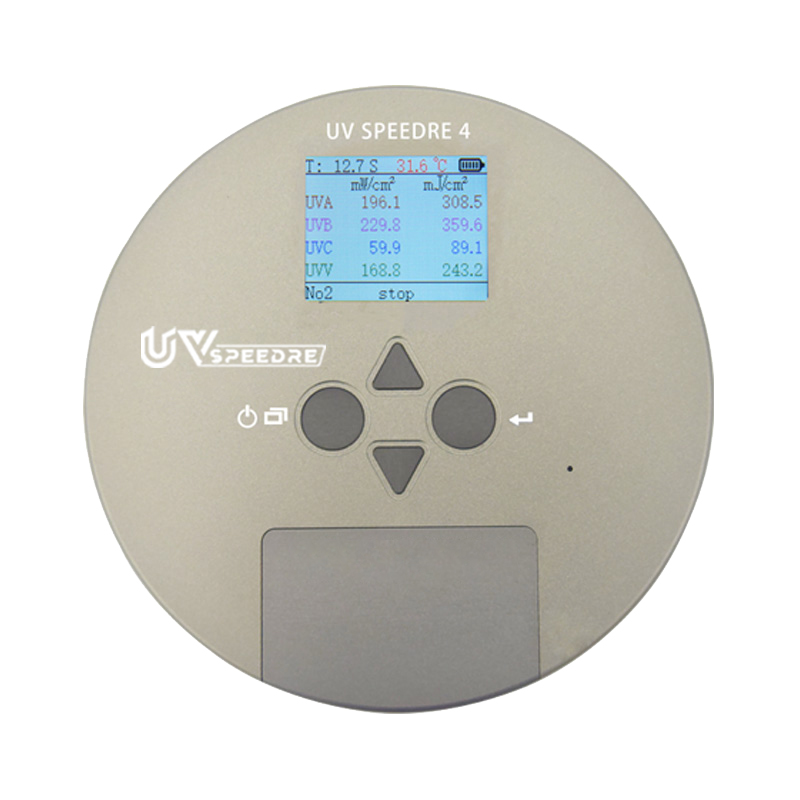

The new 4 channels UV energy meter is a monitoring device for ultraviolet light sources,observing whether the corresponding wavelength of the ultraviolet light source has reached its effective light intensity. Using precision components, color LCD display screens, and multiples election modes,it solves various scenarios and needs of users. At the same time, PC communication software is also used to read data records and analyze curves, import and export them for process validation.UV-SPEEDRE 4 four channels multifunctional UV energy meter is a multi-channel tester that can simultaneously test UV energy, power, temperature, and time in the UVA, UVB, UVC, and UVV bands. It has spectral curve display, can be connected to a computer to export data and print test reports.

It can be used to detect the UV energy and temperature of the UV curing device on the conveyor belt of the production line, and to detect whether the UV light intensity has decayed. It is applied to machine equipment such as UV dryers,curing machines, UV aging test, It is mainly suitable for testing high-pressure mercury lamps in the electronic component industry, spraying industry, UV coating industry, printing industry and other industries. , Detection of light intensity and energy of low-pressure mecury lamps, xenon lamps, mercury lamps, halogen lamps, printing lamps, light cleaning lamps, disc-specific lamps, ultraviolet iron lamps, sterilizing lamps, and short-arc xenon lamps

Product Advantages:

l It can simultaneously test the UV energy and UV light intensity of UVA, UVB, UVC, and UVV 4 channels

l It can measure temperature and UV power at the same time and display the test curve

l It has a recording function and can store a large amount of data

l It has computer analysis software and can export reports

l It can be switched independently to meet the various needs of different customers.

Product Parameters:

● Spectral Range: 4 channels simultaneously test,

                             UVA(320-390nm), UVB(280-320nm), UVC(250-260nm), UVV(395-445nm)

● Measurement range: 0.1-20000uw/cm² , 0-999999uj/cm² (low power version optional);

                                     0.1-20000mw/cm² , 0-999999mj/cm² (high power version optional)

● Measurement accuracy: ±5%

● Resolution: 0.1mw/cm²

● Power storage interval: 0.1s/time

● Temperature storage interval: 0.1s/time

● Range of Working Temperature: –55°C to 125°C

● High accuracy over full temperature range: -55℃ ~ -10℃: ±1℃; -10°C ~ 85°C: ±0.5°C; 85℃ ~ 125℃: ±1℃

● Data Storage Duration: 5 sets of data, with a total duration of 15 minutes

● Measurement Mode: Automatic measurement mode, manual measurement mode

● Data Transmission: Yes

● Analyzing Software: Yes

● Sampling Speed: 0.01s/time

● Unit Conversion: mw/cm², mj/cm² (low power version switching unit),

                                w/cm², j/cm² ; w/m², j/m² (high power version switching unit)

● Screen: Color LCD screen

● Power Supply: AA batteries

● Instrument Size: Diameter120mm*Height 13mm

● Instrument Weight: 180g

● Packaging Weight: 1200g

● Carton size: 240mm*205mm*80mm

Product Features:

★ Intelligent UV energy radiation recorder, automatic identification of testing wavelength range,simultaneous measurement of four channels

★ Color screen displays UV energy, UV light power, temperature, and test duration

★ USB interface data transmission, connected to computer software to read recorded data, perform data analysis, and export test reports

★ High precision temperature sensor, fast and real-time response to test temperature

★ Large capacity data storage, manual mode can store 5 sets of 3-minute data sets cyclically,and automatic mode can store continuously for 15 minutes

★ The stored data will not be lost after power failure, and the system will automatically ask whether to delete the previous data upon startup
