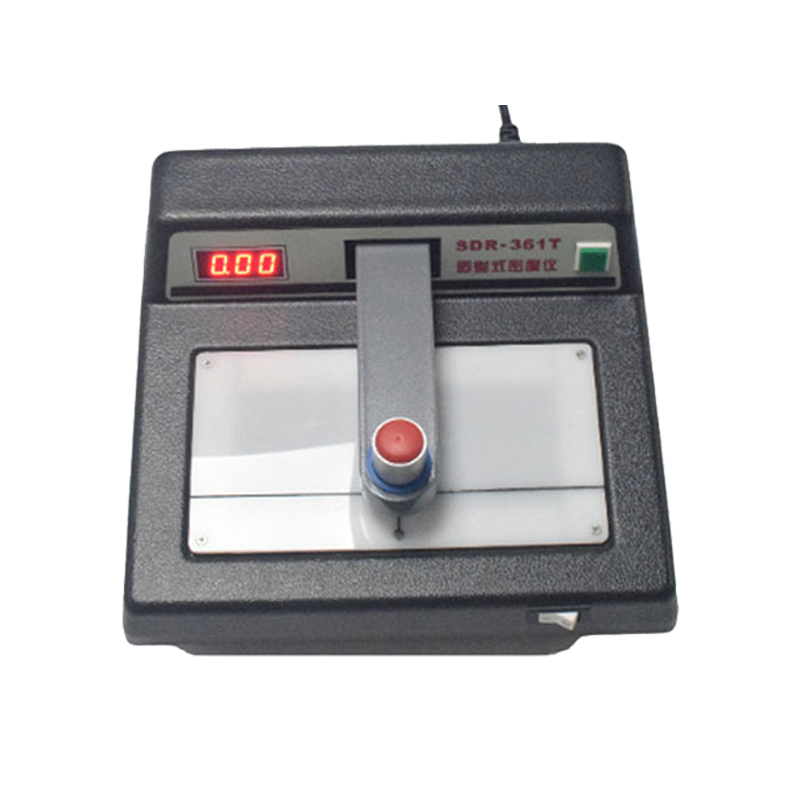

_Optical Density Meter SDR-361T

Description:

SDR-361T optical density meter has the advantages of accurate reading, good stability, easy operation, high brightness display, etc., the instrument comes with cold light source viewing and viewing table, suitable for printing, PCB film, non-destructive testing, sensitive materials, film, medical, packaging film (film, coating film thickness and uniformity detection), colored glass and other industries detection

Technical Parameter:

Optical Density Range	D=0.00-6.0D
Sampling Time	0.05S
Inaccuracy	0.03D
Aperture Size	Φ2.0mm
Reading Stability	±0.02mm
Weight	Approx 2KG
Overall Dimensions	350mmX300mmX140mm (LXWXH)
Measurement Geometry	Diffuse transmission through opal glass (0/d)
Spectral Conditions	A light source + V(λ) receptor
Medium Thickness	0-10mm
Measurement Arm Length	200mm
Display Method	Three-digit digital display
Power	Approx. 25W
Power Supply	50-60HZ, 220V±10%
Working Environment	0℃~40℃, Relative humidity≤85%

Packing List:

Main Optical Density Meter	1unit
Calibration Card	1pcs
Calibration Certificate	1pcs
Power Adapter	1set
Air-blowing Kit	1pcs
User Manual	1pcs
Carrying Case	1pcs
