UV Radiometer
Description:

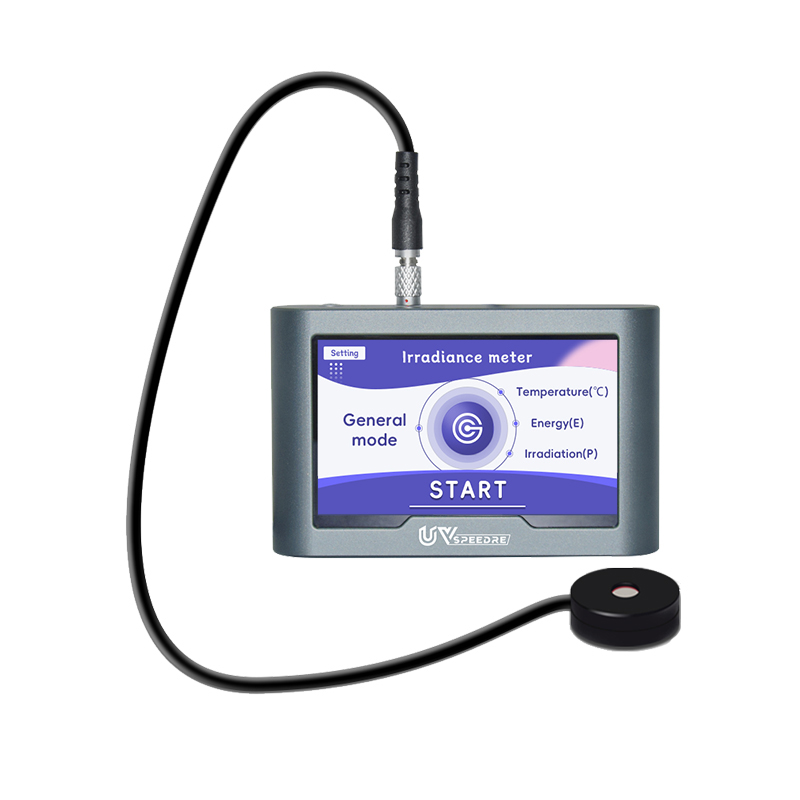

The TS560 Xenon Lamp Radiometer is specifically designed for testing light sources that simulate sunlight, such as xenon lamps. Examples include xenon lamps, xenon lamp aging test chambers, UV aging test chambers, and similar equipment.
The TS560 features a high-definition full touchscreen design for simpler operation; higher accuracy, enabling quick readings even in low light; automatic range recognition and switching, truly achieving testing from weak to strong light with one instrument, making operation simpler and faster.
The instrument consists of a main unit and a probe. The same main unit can be paired with multiple different probes according to various usage needs, plug-and-play, to meet more application scenarios.
Characteristics:
lThe instrument uses a 4.3-inch high-definition capacitive touchscreen, making operation simpler and display more intuitive.
lUtilizes a high-precision sensor, testing both weak and strong light with one instrument.
lHigh resolution, up to 0.001, meeting the reading requirements for xenon lamp aging tests.
lIntelligent range selection; the instrument automatically switches ranges based on light source intensity.
lMulti-purpose instrument; the same main unit can be used with different sensors for different light sources.
lBuilt-in high-precision temperature sensor for real-time temperature measurement during dynamic testing.
lBuilt-in timer for precise measurement time recording.
lCan save 30 sets of test data; stored data can be read via PC software and exported to generate reports.
lChinese/English language selection
Probe Specifications :
Power Range: | 0.001W/m²- 600W/m² (automatically switches units according to light source intensity) |
Energy Range: | 0.001µJ/cm²- 999999999.9 J/m² |
Power Unit: | µW/cm², mW/cm², W/cm², W/m² (can be switched automatically/manually) |
Energy Unit: | µJ/cm², mJ/cm², J/cm², J/m² (automatic/manual switching) |
Resolution: | 0.001 |
Power Error: | ±5+5%H (H indicates measured value) |
Energy Error: | ±5% |
Temperature Measurement Range: | -55℃--125℃, ±0.5℃ |
Responding Speed: | 2048 times/second |
Screen Refresh Speed: | 10 times/second |
Operation Method: | 4.3 inch touchscreen |
Battery: | 3000mAh lithium battery, lasting about 10 hours |
Automatic shut-down: | Automatic shutdown after 3 minutes of no sensing or operation (does not take effect when charging) |
Operation Prompt Sound: | Yes(can be turned off) |
WorkingEnvironment: | -20℃--60℃, humidity less than 85%, no condensation |
Language: | Chinese/English |
Size: | Host: 127*84*31mm (L*W*H） |
Mode Selection: | General mode |
Communication Method: | USB/RS48 communication |
Probe parameters:
Probe size: | 38*14mm |
Photosensitive hole diameter: | φ8mm |
Operating temperature: | -20--120℃ |
Probe material: | Aluminum |
Cable length : | 1m, extension needs to be customized |
Probe selection:
E340N
| E420N |
E800
| E400 |
E480
| Other wavelengths can be customized |
Packing list:
Serial Number | Product Name | Quantity | Remark |
1 | TS560 InstrumentHost | 1 |
|
2 | Probe | 1 | Options |
3 | USB Charging Cable | 1 |
|
4 | Manual | 1 |
|
5 | Certificate | 1 |
|
6 | Warranty Card | 1 |
|
7 | Carrying Case | 1 |
